Automotive

  • Robust yet simple to scale
  • Modular architecture with interfaces
  • IOT and Cloud compatibility
  • Measurement Intelligence and Data Analytics
  • Process Monitoring, correction and feedback loop

Electric Vehicles

   1.Stator and Rotor Assemblies

  • Bearing & Rotor Diameters, Run-out, Taper & Ovality

   2.Client Profile

  • Mahindra Electric Mobility Limited, involved in designing and manufacturing of compact electric vehicles

Parameters

  • Stator Rotor Diameters
  • Bearing Diameters
  • Run out, Taper and Ovality

Shaft & Gears

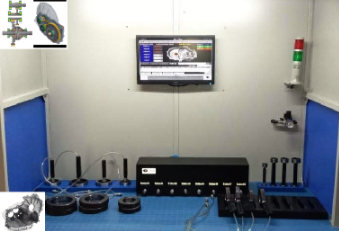

Transmission Housing

Diameters, Counter Bore, Center Distance, Flatness & Parallelism, Shim Thickness

Client Profile

Mahindra Electric Mobility Limited, involved in designing and manufacturing of compact electric vehicles

Parameters

  • Counter bore dia and depth
  • Bearing Diameters
  • Flatness & Parallelism
  • Center Distances
  • Shim Thickness

Solution Highlights

All critical parametes measured at both in CAP and CASE, automatically records max and min measurement. Also bearing assembly is rotated with known load applied. Shim thickness Calculation done based on the measured data

Measured reliably and accurately within seconds at shop floor condition

Data acquisition and transfer using RS 232 and zigbee wireless to centralized server

Custom built measurement software helps in capturing data and display analyzed outputs.

Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.


Battery Modules

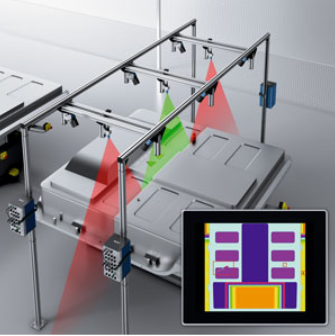

Battery Inspection

Client profile

EV Cells, Electric Vehicle Battery Packs manufacturer.

Parameters

  • Pack Dimensions
  • Surface defects and contamination

Solution Highlights

Pouch cells, cylindrical cells, and prismatic cells. Since these cells are densely packed in battery assemblies for electric vehicles, the quality and integrity of the battery cells directly affect the road safety of electric vehicles

Innovative solution for the inspection of battery cells to provide comprehensive process and quality control

In addition to dimensional inspection, the cell inspection also detects surface defects and contamination. The system can also reliably check barcodes and data codes.
