Gauging Solutions For Cylinder Head - Tappet Seating And Cam Shaft

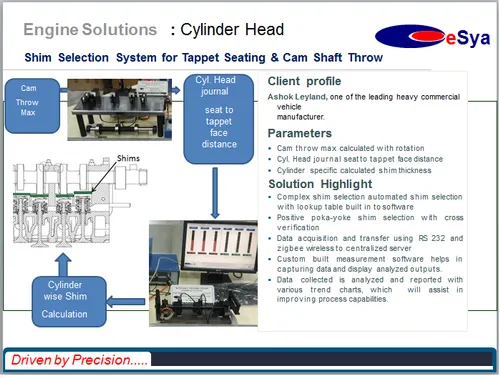

Shim selection system for Tappet Seating and Cam shaft throw

Parameters:

Cam throw max calculated with rotation

Cyl. Head journal seat to tappet face distance

Cylinder specific calculated shim thickness

Solution Highlight

Complex shim selection automated shim selection  with lookup table built in to software

Positive poka-yoke shim selection with cross  verification

Data acquisition and transfer using RS 232 and  zigbee wireless to centralized server

Custom built measurement software helps in  capturing data and display analyzed outputs

Data collected is analyzed and reported with  various trend charts, which  will assist in  improving process capabilities.
